DFP722 2,200 BTU/H Air Conditioners

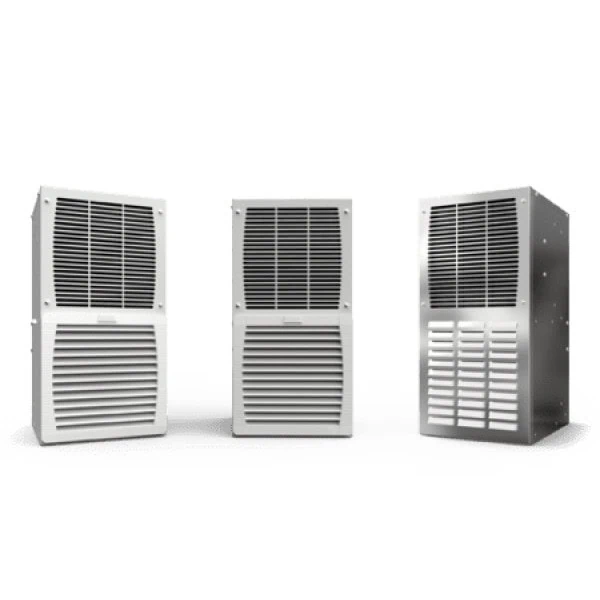

2,200 BTU/H compact series air conditioners. This unit can be added to most enclosures. The standard DFP722 has a NEMA 12 rated powder coated steel housing. Available air conditioner options are NEMA 4 and NEMA 4X. NEMA 4 is a powder coated steel housing that can handle wash down environments. NEMA 4X is for corrosive wash down environments. The 4X version has a stainless steel housing and corrosion resistant coating on the coils. The DFP722’s run on either 115v 60Hz, 230v 60Hz or 460v 60Hz power and have 6.0, 4.1 or 1.9 running amp draw respectively.
*Options include open door kill switch, corrosion resistant coatings, low ambient package, remote monitoring and integrated heater.
1 YEAR MANUFACTURER WARRANTY ON AIR CONDITIONER
FREE SHIPPING ON AC UNITS
Air Conditioner Features:
- Closed Loop Design
- Thermal Overload Protection
- Thermal Expansion Valve
- Hermetically Sealed Compressor
- Condensate Drain Port
- ERP Efficiency Certified and Rugged Design
How to use this chart:
Example: @ 95 F (ambient, X-axis), @ 95 F (internal, diagonal lines)
= 2700 Btu/h cooling capacity (Y-axis)
Air Conditioner Part #’s
115V AC Unit

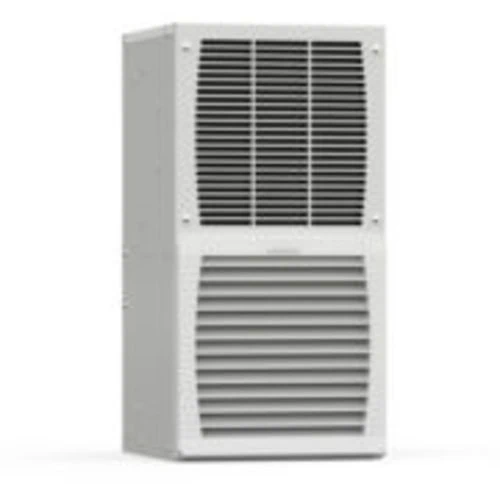

DFP722 NEMA 12 rated, indoor use, powder coated steel shell. Pfannenberg DTS 3041
DFP722-04 NEMA 4 rated, outdoor use, powder coated steel shell. Pfannenberg DTS 3061
DFP722-04-HTR NEMA 4 rated, outdoor use, powder coated steel shell. BUILT IN HEATER Pfannenberg DTS 3061

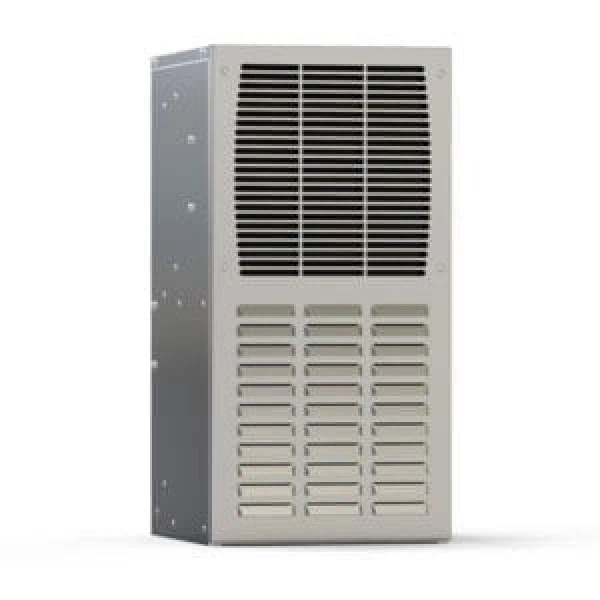

DFP722-4X NEMA 4X rated, washdown, corrosion resistant stainless steel shell. Pfannenberg DTS 3081
DFP722-4X-HTR NEMA 4X rated, washdown, corrosion resistant stainless steel shell. BUILT IN HEATER Pfannenberg DTS 3081
230V AC Unit
DFP722-230 NEMA 12 rated, indoor use, powder coated steel shell. Pfannenberg DTS 3041
DFP722-04-230 NEMA 4 rated, outdoor use, powder coated steel shell. Pfannenberg DTS 3061
DFP722-04-230-HTR NEMA 4 rated, outdoor use, powder coated steel shell. BUILT IN HEATER Pfannenberg DTS 3061
DFP722-4X-230 NEMA 4X rated, washdown, corrosion resistant stainless steel shell. Pfannenberg DTS 3081
DFP722-4X-230-HTR NEMA 4X rated, washdown, corrosion resistant stainless steel shell. BUILT IN HEATER Pfannenberg DTS 3081
460V AC Unit
DFP722-460 NEMA 12 rated, indoor use, powder coated steel shell. Pfannenberg DTS 3041
DFP722-04-460 NEMA 4 rated, outdoor use, powder coated steel shell. Pfannenberg DTS 3061
DFP722-4X-460 NEMA 4X rated, washdown, corrosion resistant stainless steel shell. Pfannenberg DTS 3081
Features
ERP Efficiency Certified
As a component of the Kyoto Protocol to reduce carbon monoxide emissions, the European Energy Related Products (ERP) Directive includes an efficiency rating for fans. Pfannenberg proudly utilizes components which adhere to these requirements.
High Airflow Backward Curve Impeller Fan
Provides high airflow in a long lasting, single bearing design. Outperforms typical two-bearing blowers with nearly twice the lifespan.
Closed Loop Design
Designed to isolate the external ambient air from the internally conditioned air eliminating the risk of contaminants entering the cabinet.
Thermal Overload Protection
Compressor and fan motors are outfitted with integral temperature switches to shut down the unit in the event of excessive temperature. This increases the operating life of the compressor by preventing thermal overload trips.
Pressure Overload Protection
High pressure cutout switch ensures safety by shutting off the compressor in the event of excessive pressure appearing in the refrigeration circuit.
Environmentally Friendly
Utilizes HFC-free R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment.
Hermetically Sealed Compressor
The absence of any refrigerant fill valves eliminates leak paths. Recharging is never needed. 100% cooling capacity efficiency is ensured.
Highest in Class Capacity
The compact, 10 inch width is ideal for small enclosures with a relatively small heat load. The integral power cord helps simplify installation. An integral ingress filter is provided on type 12/3R/4 versions.
Corrosion Protection
Outdoor and wash-down units have a special coating on pipes and coils on the ambient side of the unit to provide maximum protection from saltwater, sour gas, and other corrosive substances.
Optimized Condenser Design
The wide fin spacing is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
Easy to Maintain
includes an integrated Pfannenberg PFA Exhaust Filter for simple replacement of the filter.
Thermal Expansion Valve
Regulates the flow of refrigerant based on thermal demand for efficient performance over the entire operating temperature range.
High Ambient Performance
The DTS 3000 Series Cooling Units were designed utilizing high temperature compressors and larger condensers. Both the indoor NEMA Type 12 units and outdoor units perform very well in environments that require cooling where the maximum ambient temperature is 131° F.
Rugged Design
Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
