Mobile Workstation for your Keyence IM Measuring System with Articulating Monitor Arm Mount

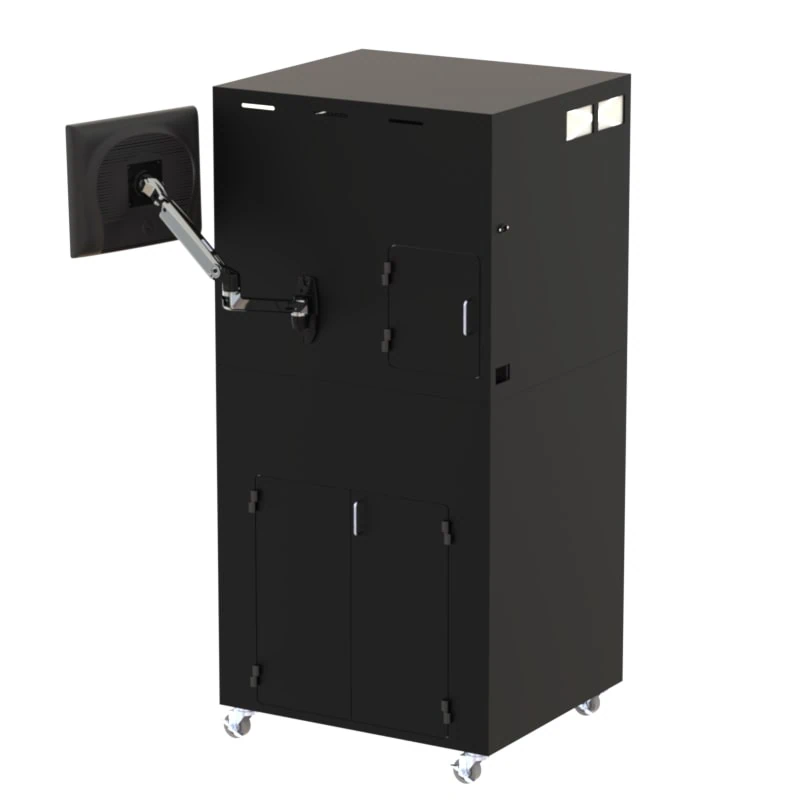

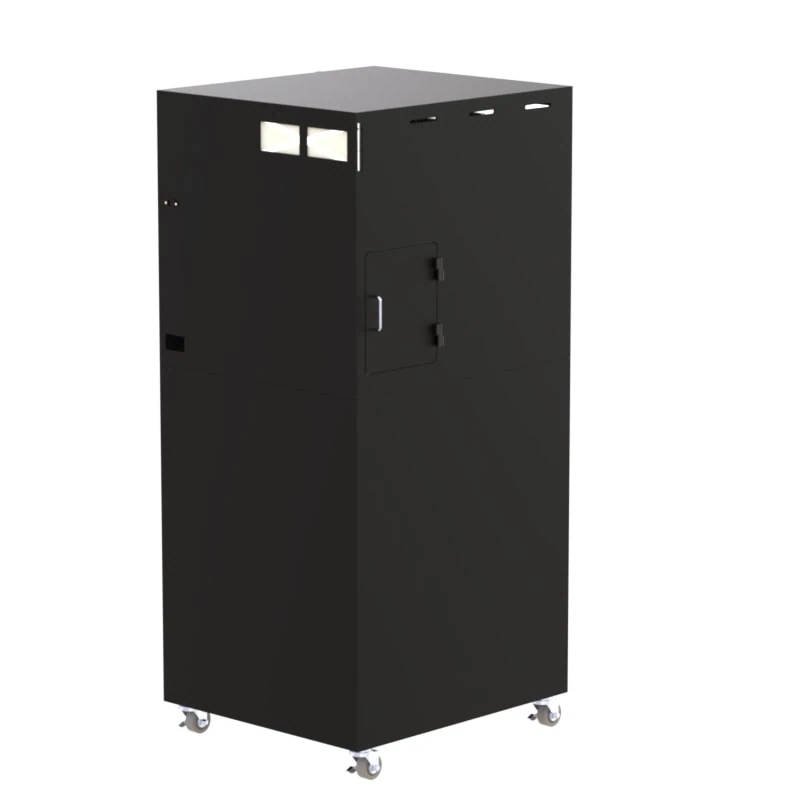

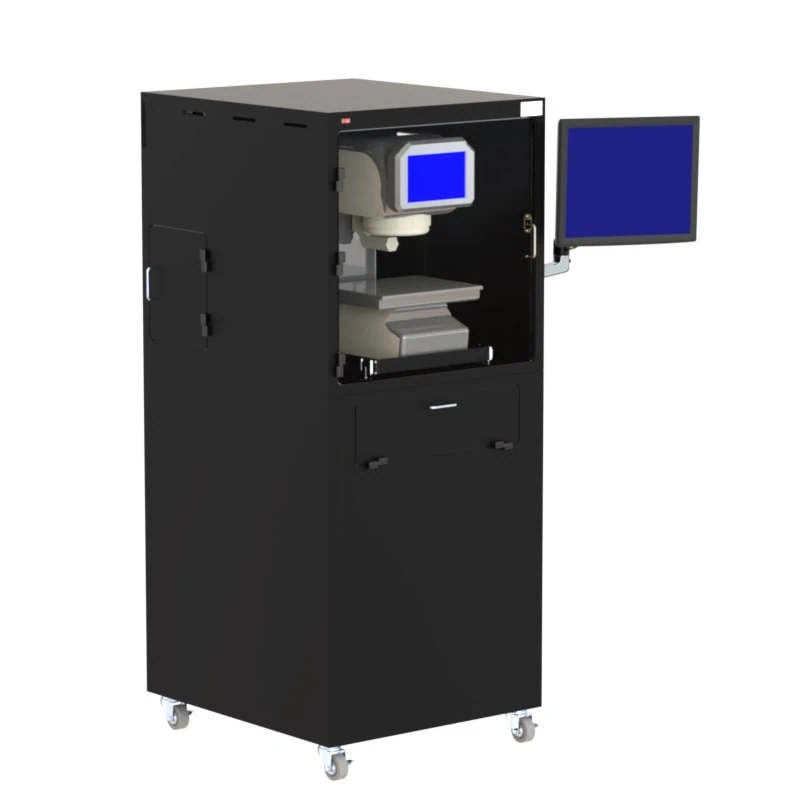

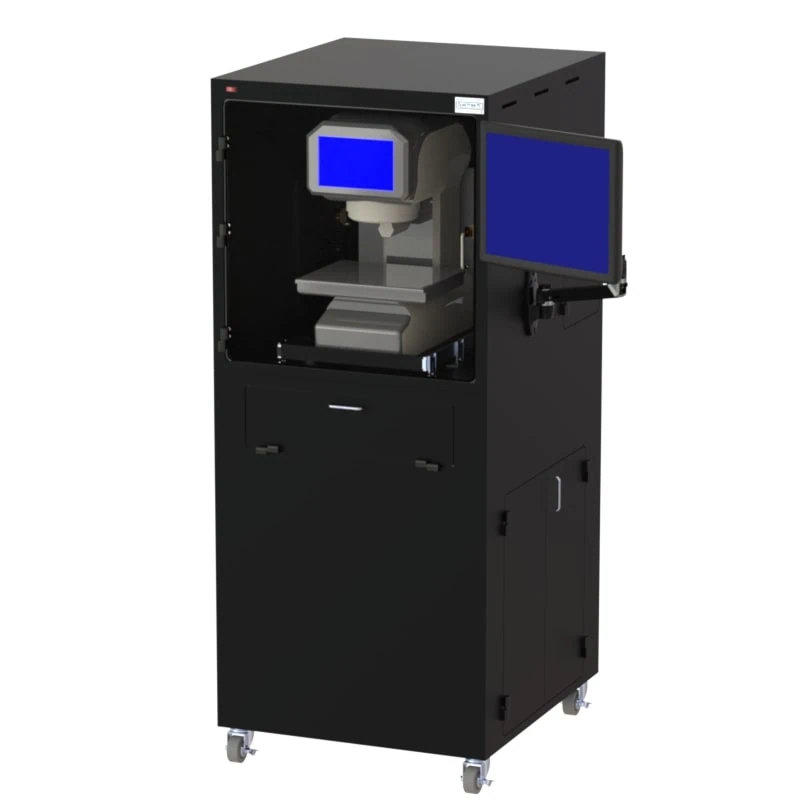

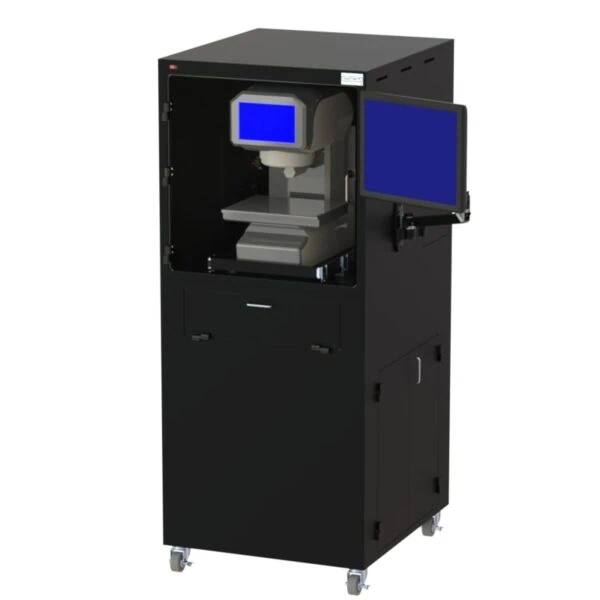

The DFP201IM7030-TKB-MRA works like a mobile clean-room keeping airborne debris from entering and damaging your Keyence IM7000 & IM8000 imager and controller. Slide out tray for the IM imaging machine allows easy access to the imaging stage. An Ergotron LX wall monitor arm is included for convenient monitor placement for any height user. Side access doors offer front and rear access to the front of the controller and cabling. There is a large storage area in lower cabinet. There is a pullout keyboard tray with a mouse slider and the enclosure is mounted on heavy-duty, 3″ locking casters. Our NEMA 12 style dual-fan positive pressure enclosures are the most user friendly on the market featuring easy access to equipment. Our industrial tough ABS construction will work seamlessly with wireless networks.
If you need air conditioning or any other custom option, please fill out and submit request form above.
This enclosure works for the IM7010, IM7020, IM7030, IM8010, IM8020, IM8030, IM8030T and LM-1000 imagers with an 8″ or 12″ wide stage. The lower storage cabinet does not have a fan/filter system.
THIS ENCLOSURE DOES NOT WORK WITH THE LM-X100 IMAGER. Click HERE for all LM-X100 Enclosures.
5-YEAR WARRANTY ON ENCLOSURE
