WD201MLZ-VRT-PF Air Conditioned Washdown Enclosure

Vertically mounted Keyence ML-Z 9500 or ML-Z 9600 laser head in a washdown NEMA 4 rated enclosure. Stainless Steel NEMA 4X rated air conditioner

$1,479.00

Please Select Your AC Unit From Drop Down List Below

1 × DTS 3021 1000 BTU/H Air Conditioner
Input Voltage
NEMA Rating
From: $3,598.00

CALL OR CONTACT FOR MORE INFORMATION:
 904-739-7201

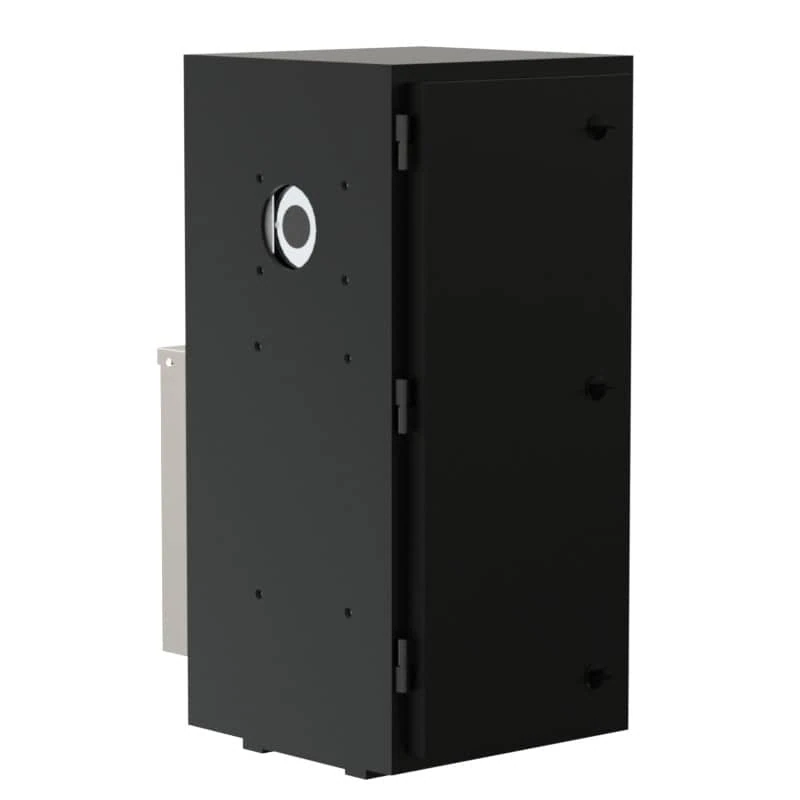

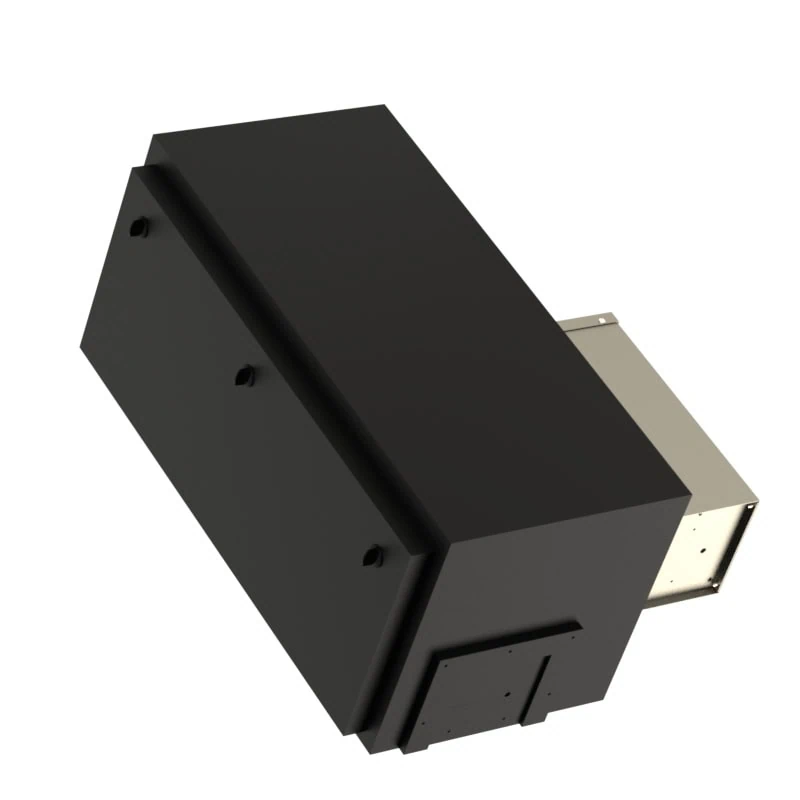

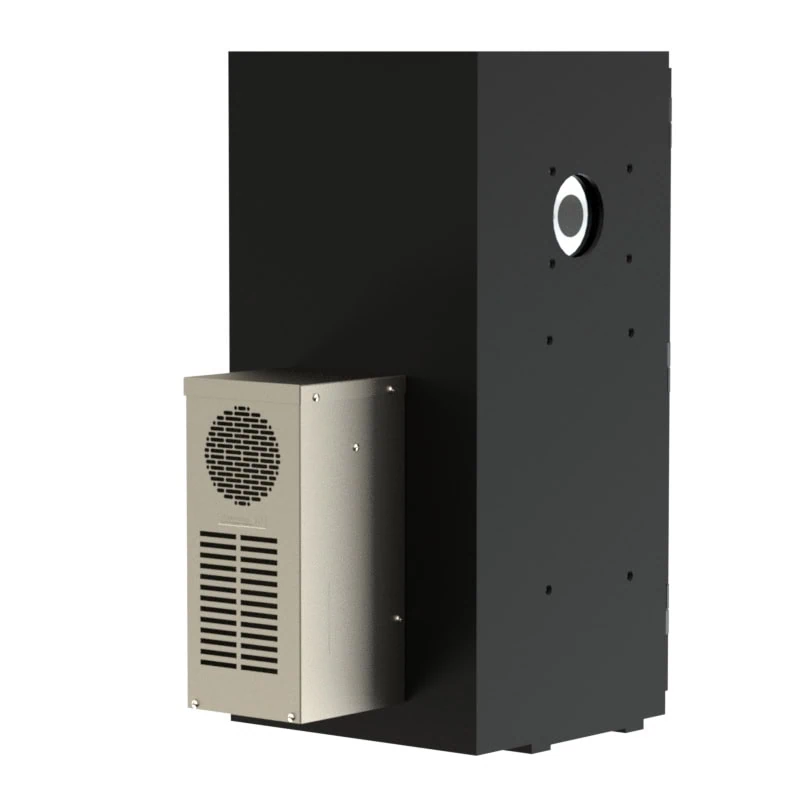

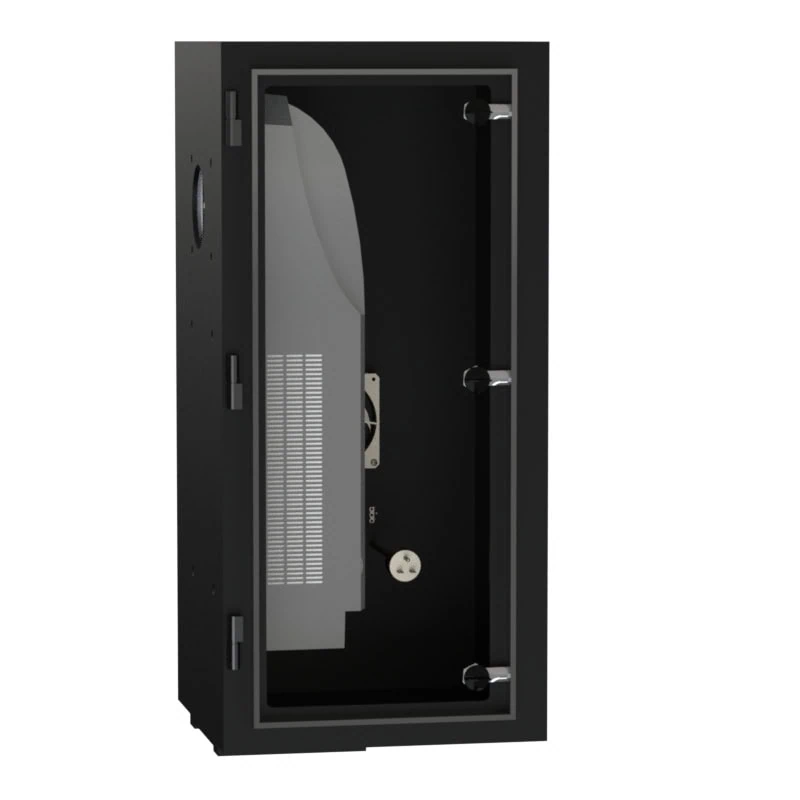

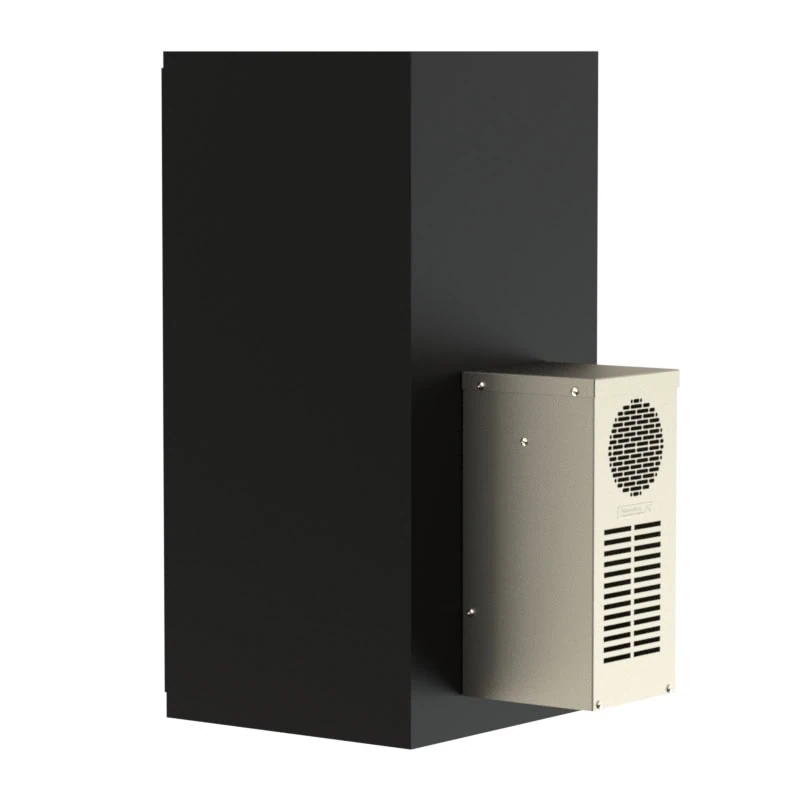

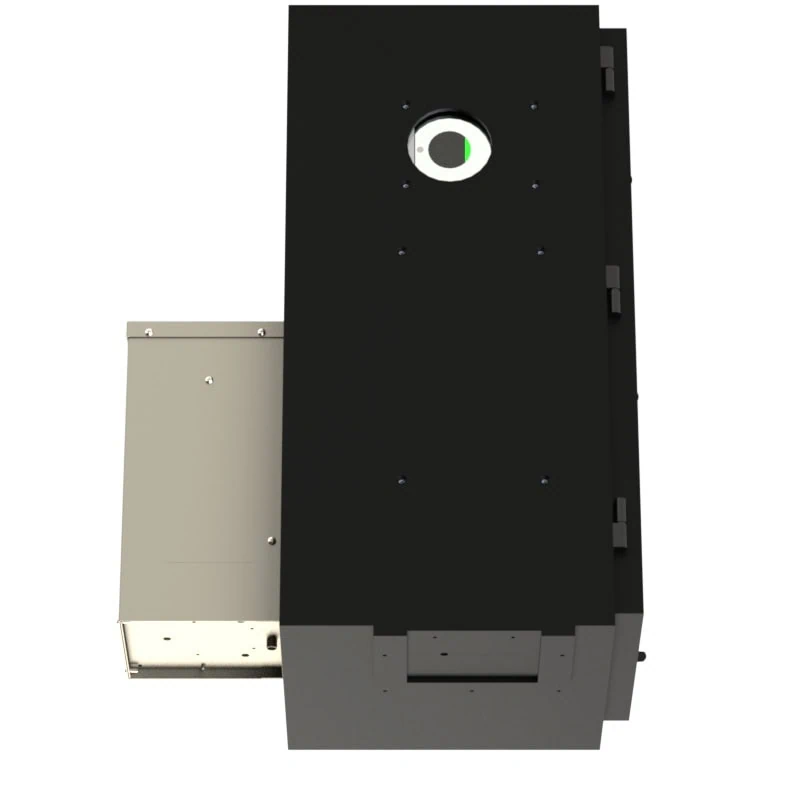

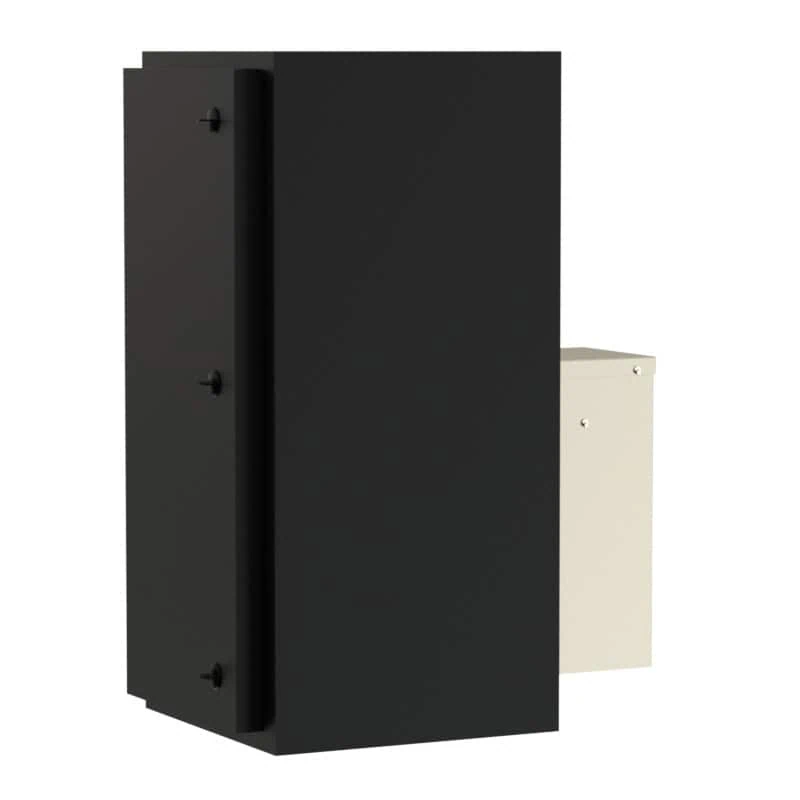

The WD201MLZ-VRT-PF is a washdown rated enclosure for Keyence ML-Z9500 & ML-Z9600 laser heads. It has a Pfannenberg DTS 3031 SS 1,000 Btu stainless steel housing, NEMA 4X (washdown) rated air conditioner attached to it, keeping the laser head clean, cool and corrosion free. The laser is orientated in an upright vertical position. The main access door is fully gasketed with 3M gasket and held securely closed with three washdown rated South Co. cam latches. There is a cable gland on the bottom of the enclosure that is designed to fit snug around all the cables leaving the enclosure, keeping the dry cool air inside the enclsoure and the wet dirty air outside. The only exposed part of the laser is the eye which is gasketed around the perimeter. This enclosure will handle spills and washing while keeping the laser dry.

This enclosure will allow the laser to operate in an environment that is very dirty and wet.

If you need your laser mounted horizontally or any other direction we have enclosures for that as well. The AC unit must be orientated up right to function properly. We also offer fan/filtered enclosures and air to air heat exchanger enclosures for these lasers and controllers.

When ordering you will need to choose a 115v or 230v air conditioner in the drop-down box above or table below.

Please contact us with any questions or custom design needs for your Keyence Laser Markers @ 904-739-7201 or email Sales@dustfreepc.com.

5-YEAR WARRANTY ON WASHDOWN ENCLOSURES, ONE YEAR MANUFACTURER WARRANTY ON AIR CONDITIONING UNIT.

Features

  • NEMA 4 Rated
  • Industrial Grade ABS Construction
  • Stainless Steel Hardware
  • NEMA 4X Rated 1,000 Btu Pfannenberg DTS 3031 SS Air Conditioner
  • Fully Gasketed Enclosure
  • Custom Cable Gland
  • NEMA 4 Rated
  • Industrial Grade ABS Construction
  • Stainless Steel Hardware
  • NEMA 4X Rated 1,000 Btu Pfannenberg DTS 3031 SS Air Conditioner
  • Fully Gasketed Enclosure
  • Custom Cable Gland

Drawing PDF's and 1K AC Specs

Click Links Below for Enclosure Drawings with Dimensions

#1219 WD201MLZ-VRT-PF

1,000 Btu Air Conditioner Spec Sheets

DFP721 AC DATA SHEET

721 USER MANUAL

Request a Quote

Our dedicated team is always here to answer your questions, assist with an order, recommend products, or discuss custom designs. Call, email, or fill out the form below and we’ll respond promptly.

Phone: 904-739-7201
Email: Sales@DustFreePC.com

Industrial ABS Composite

Our NEMA rated enclosures are designed and built using Industrial ABS Composite, for high impact resistance and suitability for heavy duty industrial environments.

ABS Technology Advantages:

  • Wireless Network Friendly
  • Rapid Prototyping
  • Very high impact strength
  • High tensile strength and stiffness
  • Excellent high and low temperature performance
  • Resistant to many chemicals and plasticizers
  • Will not rust or corrode

Trust Our 5-Year Warranty

Dust Free PC is a premier NEMA 4 enclosure and cabinet manufacturer, offering standard PC enclosures and custom computer enclosure solutions for industrial markets worldwide.

Products manufactured by Dust Free PC are warranted of defects and workmanship for 5 years from the date of purchase. Components integrated in the enclosure, not manufactured by Dust Free PC, will utilize the original manufacturer’s warranty.
