LM-X100 Mobile Workstation for Heavy Oil Environments

Heavy oil in the air can cause damage to the LM-X100 imager. This enclosure can keep a lot of the oil out of the imager with gasketed doors, recirculated air conditioned air and a small stage access door. Enclosure comes with an articulating monitor arm that mounts on the right side wall.

$4,559.00

Please Select Your AC Unit from the Drop Down List Below

1 × DTS 3041 2200 BTU/H Air Conditioner (AO)
NEMA Rating
Input Voltage
Built-in Heater
From: $3,989.00

Most Common AC Unit for this Enclosure is the 115 Volt, NEMA 12, NO Heater Option.

SKU DFP201LMX-3R4 Category

CALL OR CONTACT FOR MORE INFORMATION:
 904-739-7201

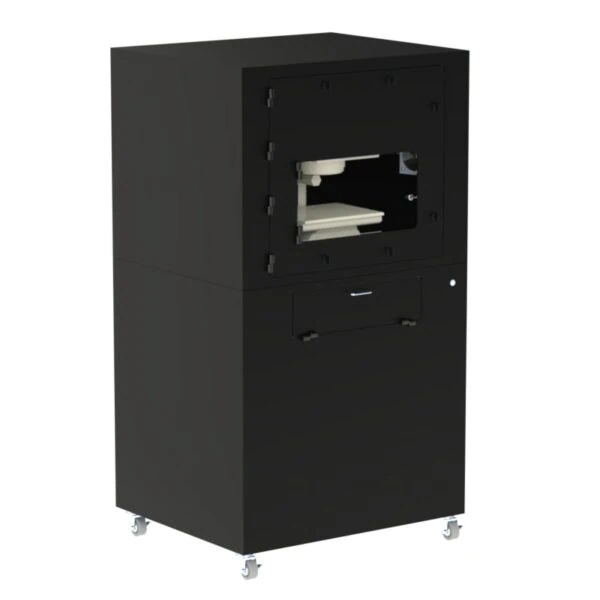

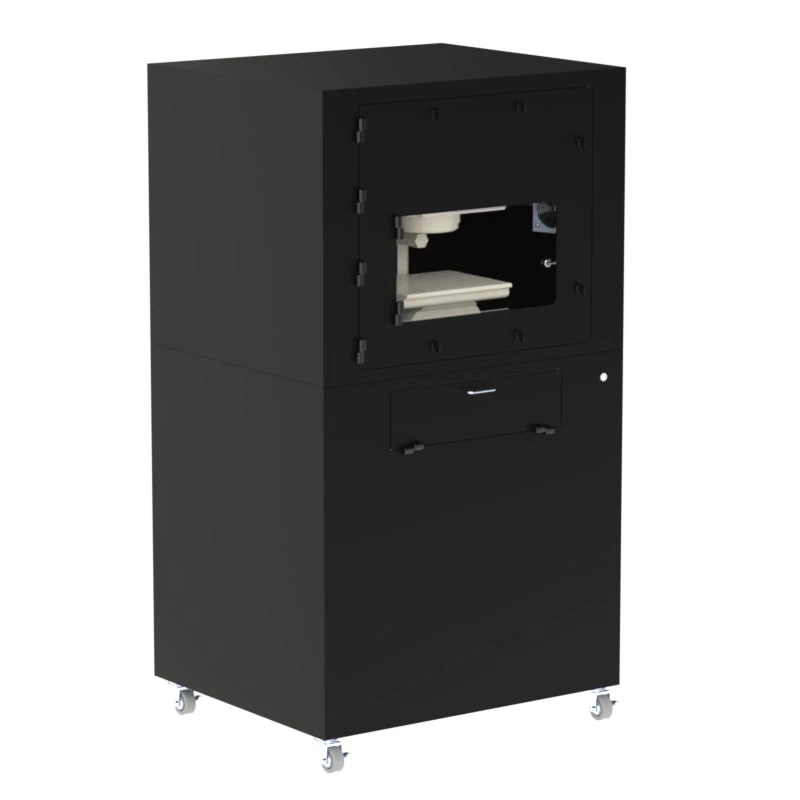

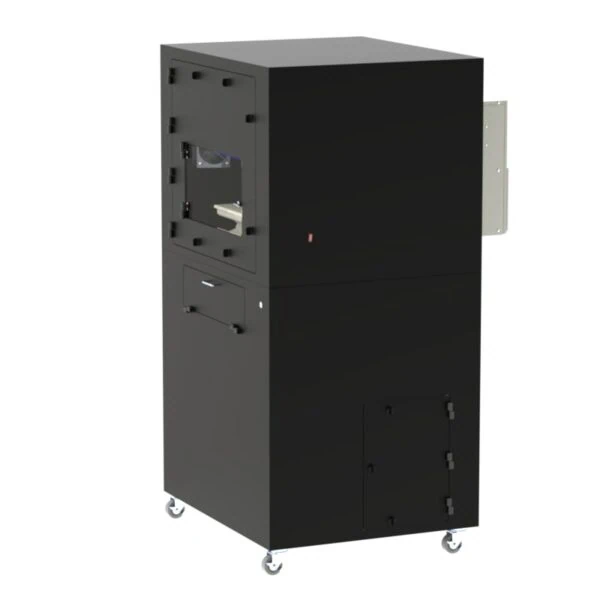

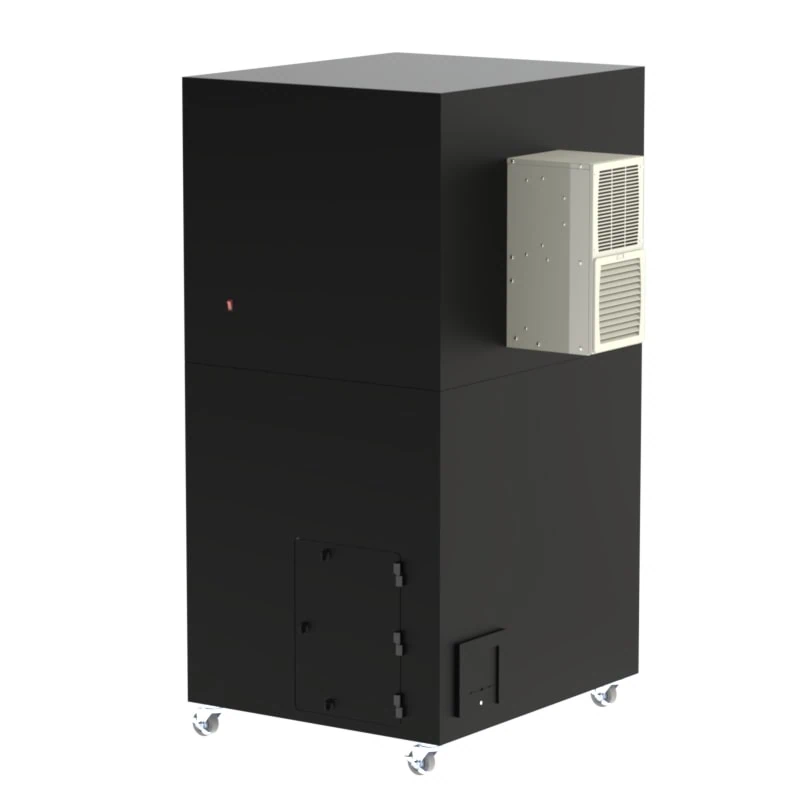

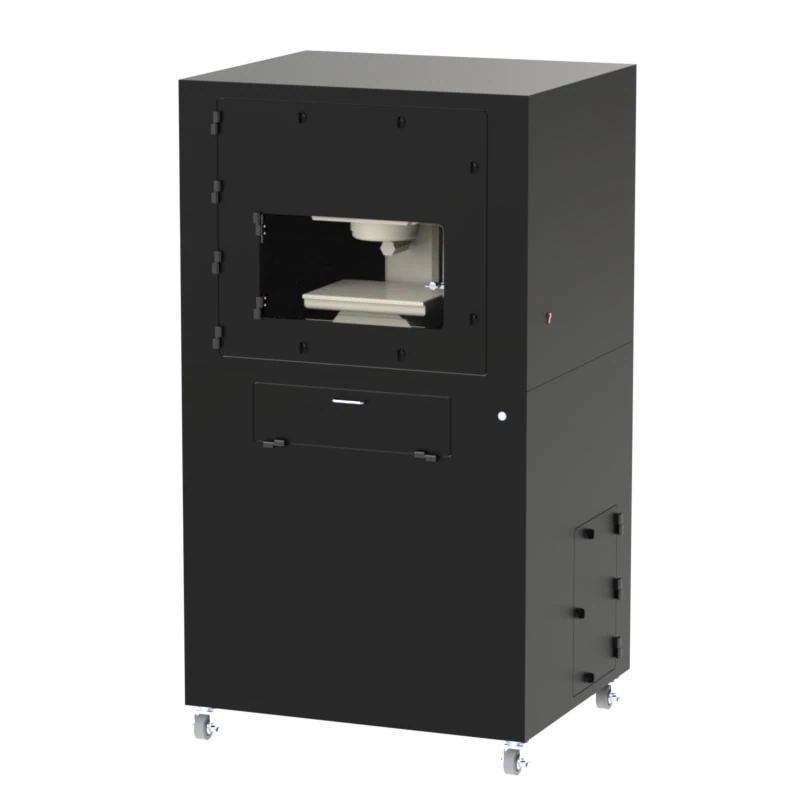

If your shop environment has HEAVY machine oil in the air this workstation was designed to keep it out of the LM-X imager. This enclosure is NEMA 4 rated and uses an air conditioner and multiple fans to keep cool air flowing around inside the enclosure. All the doors are gasketed and held tightly closed with compression cam latches. The door in front of the LM-X imager has a small clear acrylic door that is lined up with the stage for placing parts to be measured. There is a wall of positive pressure air flowing at the back of the small part door that keeps outside air and oil out of the enclosure. The enclosure comes with an articulating monitor mounting arm bolted to the right side of the enclosure that can hold up to a 24″ monitor. There is a cable gland on the lower corner of the rear wall. This enclosure is designed to keep oil saturated air out of the LM-X imager.

Click HERE for the fan and filter version of this workstation that works better for Light oil in the air environments.

Click HERE for a tabletop version of this enclosure for Heavy oil in the air environments.

The enclosure is mounted on heavy-duty, 3 inch locking casters. Our NEMA 12 style dual-fan positive pressure enclosures are the most user friendly on the market featuring easy access to equipment. Our industrial tough ABS construction will work seamlessly with wireless networks.

5-YEAR WARRANTY ON ENCLOSURE.  1 YEAR MANUFACTURES WARRANTY ON THE AIR CONDITIONER.

Drawing PDF's

Click links below to see attached PDF for enclosure dimensions and details.

#1668 201LMX-3R4

Request a Quote

Our dedicated team is always here to answer your questions, assist with an order, recommend products, or discuss custom designs. Call, email, or fill out the form below and we’ll respond promptly.

Phone: (904) 739-7201
Email: Sales@DustFreePC.com

Industrial ABS Composite

Our NEMA rated enclosures are designed and built using Industrial ABS Composite, for high impact resistance and suitability for heavy duty industrial environments.

ABS Technology Advantages:

  • Wireless Network Friendly
  • Rapid Prototyping
  • Very high impact strength
  • High tensile strength and stiffness
  • Excellent high and low temperature performance
  • Resistant to many chemicals and plasticizers
  • Will not rust or corrode

Trust Our 5-Year Warranty

Dust Free PC is a premier NEMA 4 enclosure and cabinet manufacturer, offering standard PC enclosures and custom computer enclosure solutions for industrial markets worldwide.

Products manufactured by Dust Free PC are warranted of defects and workmanship for 5 years from the date of purchase. Components integrated in the enclosure, not manufactured by Dust Free PC, will utilize the original manufacturer’s warranty.
