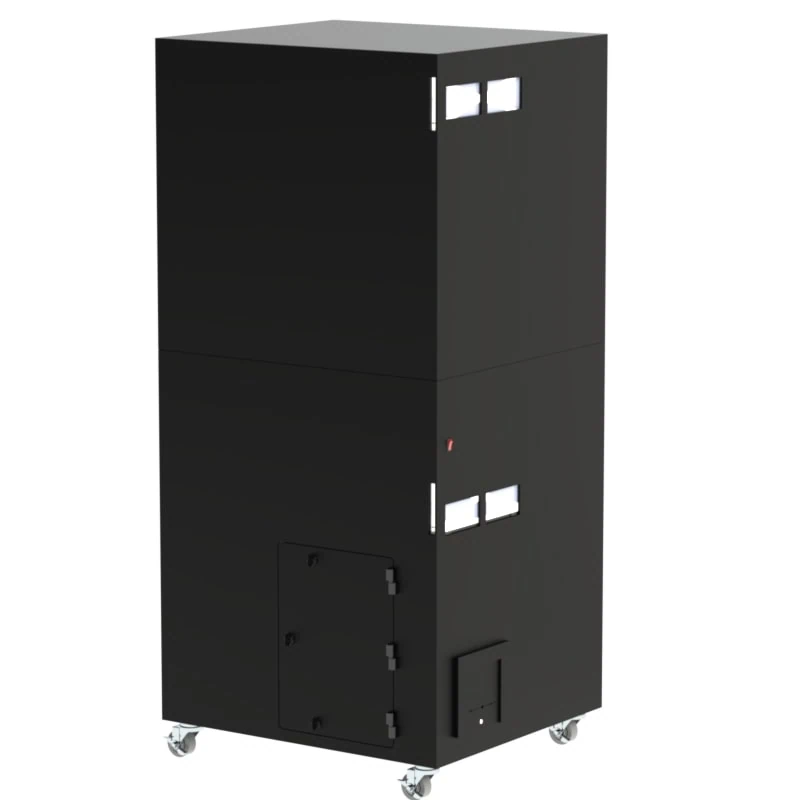

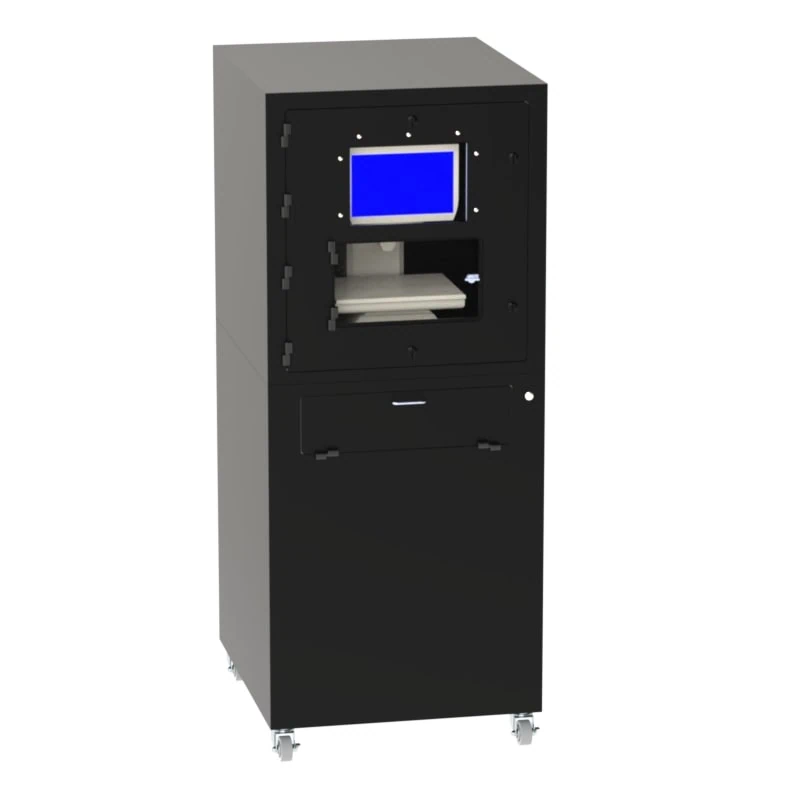

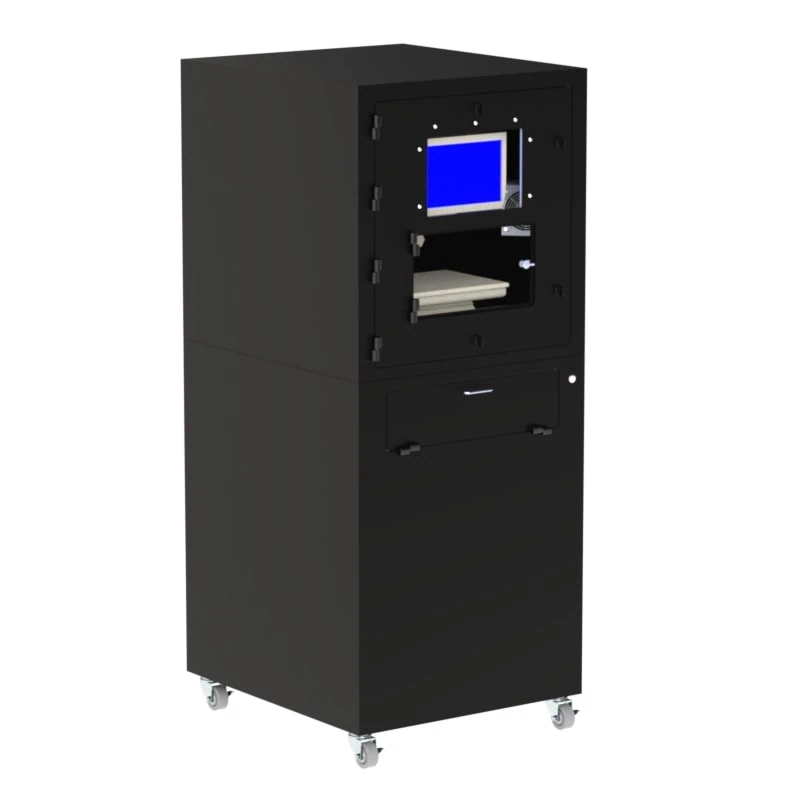

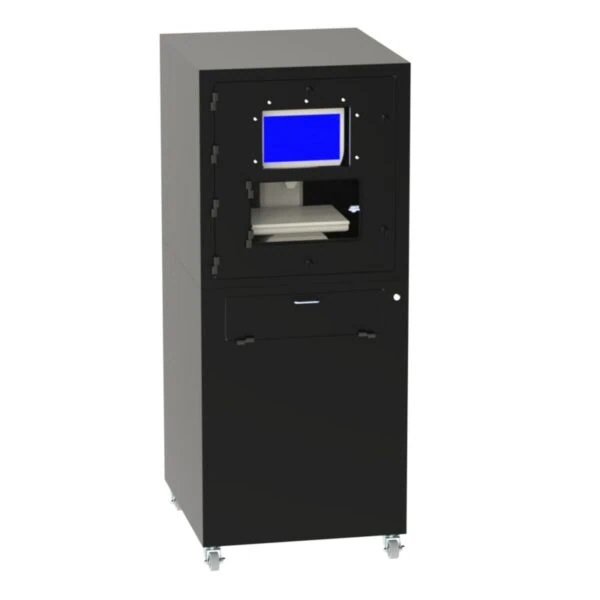

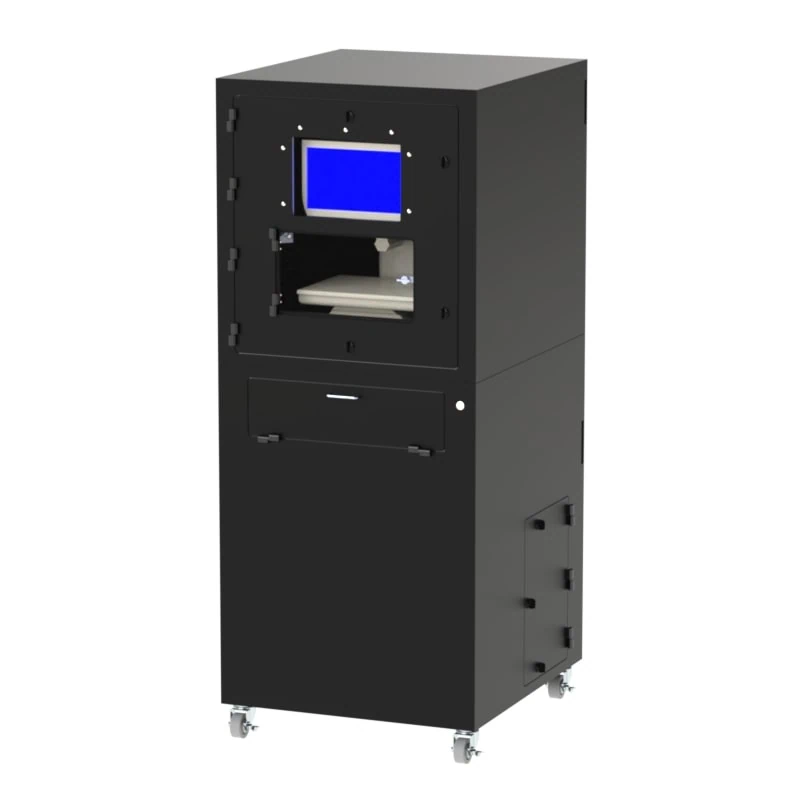

If your shop environment has light machine oil in the air this workstation was designed to keep it out of ALL Keyence IM imagers. This enclosure is NEMA 12 rated and uses positive pressure filtration systems to keep air flowing in through micron filters. All the doors are gasketed and held tightly closed with compression cam latches. The door in front of the IM imager has a small clear acrylic door that is lined up with the stage for placing parts to be measured. There is a wall of positive pressure air flowing at the back of the small part door that keeps outside air and oil out of the enclosure. There is a cable gland on the lower corner of the rear wall. This enclosure is designed to keep lightly oil saturated air out of all the IM-7000, IM-8000 and LM-1000 imagers.
The enclosure is mounted on heavy-duty, 3″ locking casters. Our NEMA 12 style dual-fan positive pressure enclosures are the most user friendly on the market featuring easy access to equipment. Our industrial tough ABS construction will work seamlessly with wireless networks.
THIS ENCLOSURE DOES NOT WORK WITH THE LM-X100 IMAGER. Click HERE for all LM-X100 Enclosures.
5-YEAR WARRANTY ON ENCLOSURE
