Keyence IM-8000 Air Conditioned Mobile Workstation with Laser Printer Area DFP255IM7K-PF

Air Conditioned Mobile Workstation for your Keyence IM Image Measuring System with Self Closing Door above Laser Printer in Lower Cabinet

The DFP255IM7K-PF air conditioned mobile workstation houses the Keyence IM Imager in the upper cabinet on a slide out tray.

Choose options to see price.

Please Select Your AC Unit From Drop Down List Below

1 × DTS 3041 2200 BTU/H Air Conditioner (AO)
NEMA Rating
Input Voltage
Built-in Heater
From: $3,989.00

The most common AC option for this enclosure is the NEMA 12, 115V, NO HEATER

Type printer info or dimensions LxWxH
Product total
Options total
Grand total

CALL OR CONTACT FOR MORE INFORMATION:
 904-739-7201

Air Conditioned Mobile Workstation for your Keyence IM Image Measuring System with Self Closing Door above Laser Printer in Lower Cabinet

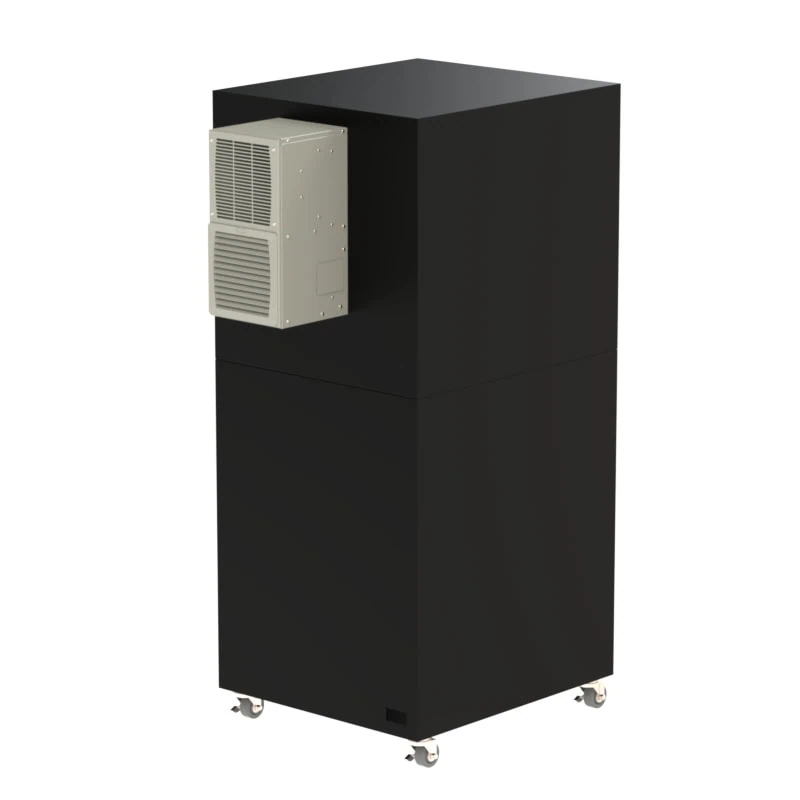

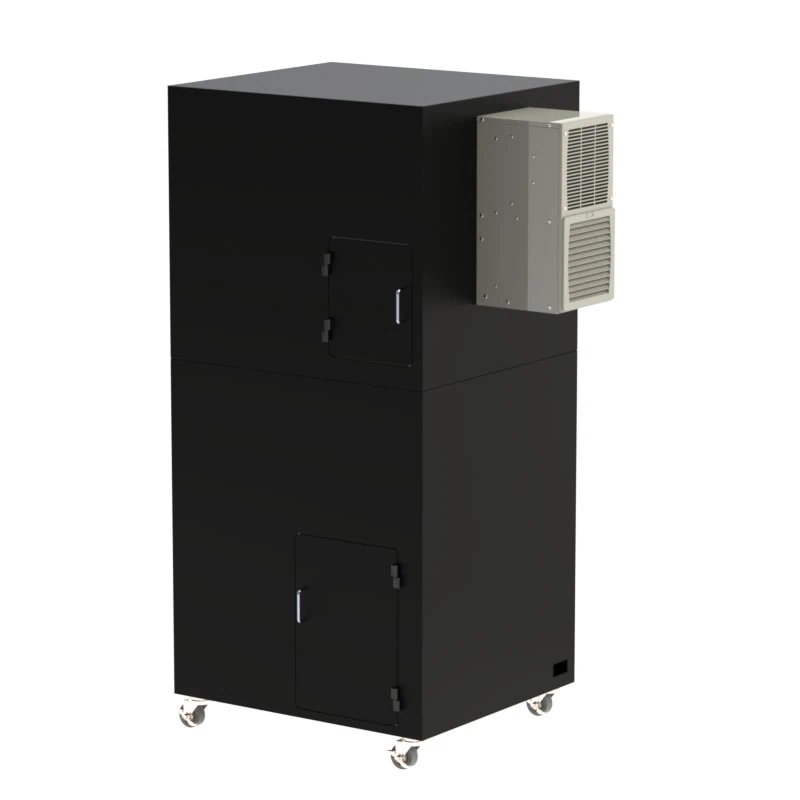

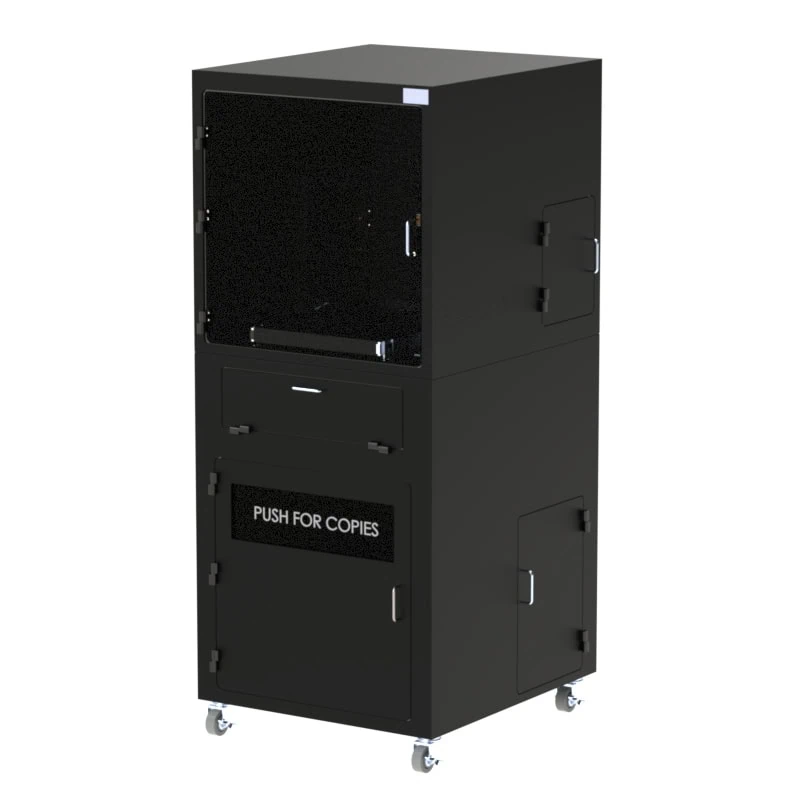

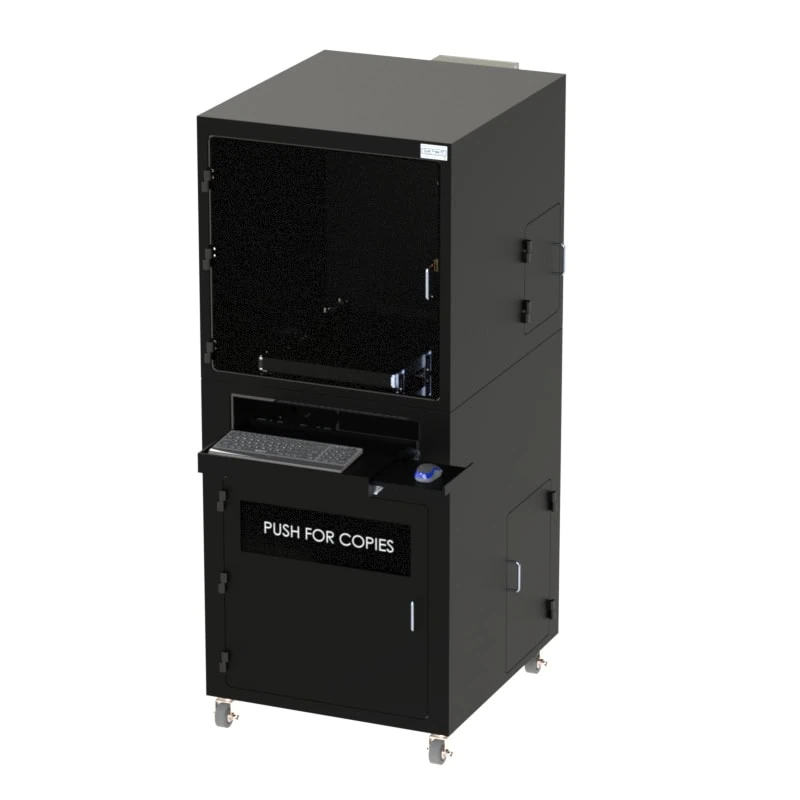

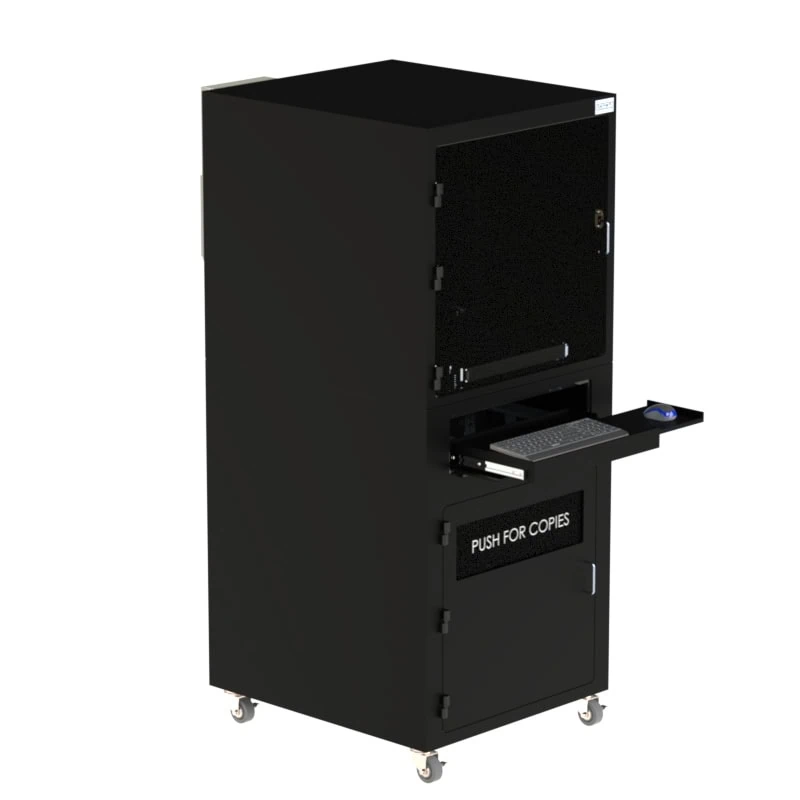

The DFP255IM7K-PF air conditioned mobile workstation houses the Keyence IM Imager in the upper cabinet on a slide out tray. There is a door on the right rear of the top cabinet for access to the AC unit and cabling to the imager head. The 2,200 Btu AC unit cools and reduces humidity inside the upper and lower enclosure. A set of high volume fans push the cool, dry air down into the lower enclosure. The lower enclosure houses a keyboard tray with a hidden mouse slide out. Below the keyboard tray is a large compartment for a laser printer. The printer door has a self-closing push for copies door built into it. When there are papers that need to be removed from the printer, push the door open, retrieve the copies and the door will close on its own. There is an access door on the lower right side of the enclosure for easy printer cable routing. The enclosure is mounted on heavy-duty, 3″ locking casters. Our NEMA 12 style dual-fan positive pressure enclosures are the most user friendly on the market featuring easy access to equipment. Our industrial tough ABS construction will work seamlessly with wireless networks. The DFP255IM7K-PF works for the Keyence IM 7010, IM 7020, IM 8010 and the IM 8020 with the 8″ wide stage.

Keyence IM-7030, IM-7030T, IM-8030 and IM-8030T with 12″ stage requires a larger enclosure, part# DFP255IM7030-PF

Keyence LM-1100 High Accuracy Image Dimension Measurement System will fit in the DFP255IM7030-PF

The DFP255IM7K-PF can hold up to an 18″W x 20″D x 16″H laser printer.

The DFP255IM7030-PF can hold up to a 23″W x 20″D x 16″H laser printer.

When ordering PLEASE specify printer dimensions or printer make and model.



5-YEAR WARRANTY ON ENCLOSURE

Click HERE for AIR CONDITIONED MOBILE WORKSTATIONS w/ PRINTER COPY DOOR

Click HERE for ALL KEYENCE Enclosures

THE KEYENCE LM-X100L, LM-X100T & LM-X100TL WILL NOT FIT IN THESE ENCLOSURES. Click HERE for all Keyence LM-X100 Imager Enclosures

Features

Enclosure Features

  • 2000 Btu Air conditioner
  • Front & rear access doors
  • Laser Printer Compartment
  • Self Closing Push for Copies Door
  • Casters included
  • Industrial ABS construction
  • Great for wireless networks
  • NEMA rated enclosure
  • Stainless steel fasteners
  • Custom solutions available
  • 5 year warranty

Drawing PDF's and 2K AC Specs

Click Links Below for Enclosure Drawings with Dimensions

#1468 255IM7030-PF

#1470 255IM7K-PF

Air Conditioner Spec Sheets

DFP722 115V DATA SHEET

DFP722 230VAC DATA SHEET

DFP722 460V DATA SHEET

DFP722_Technical Manual
